Net weight​

1 Kg

Dlameter

1.75 mm / 2.85 mm

Color

White / Blue /Black /Orange /Green /Red /Yellow /Purple

Technical Data Sheet

10% Chopped glass fiber reinforced ABS-GF 3D Printing Material

Product Description

FusFun™ ABS-GF is an ABS-based filament specially developed for 3D printing and it is reinforced with 10% glass fiber. Compared with other ABS filaments, it has a much lower odor and excellent dimensional stability.

Previous slide
Next slide

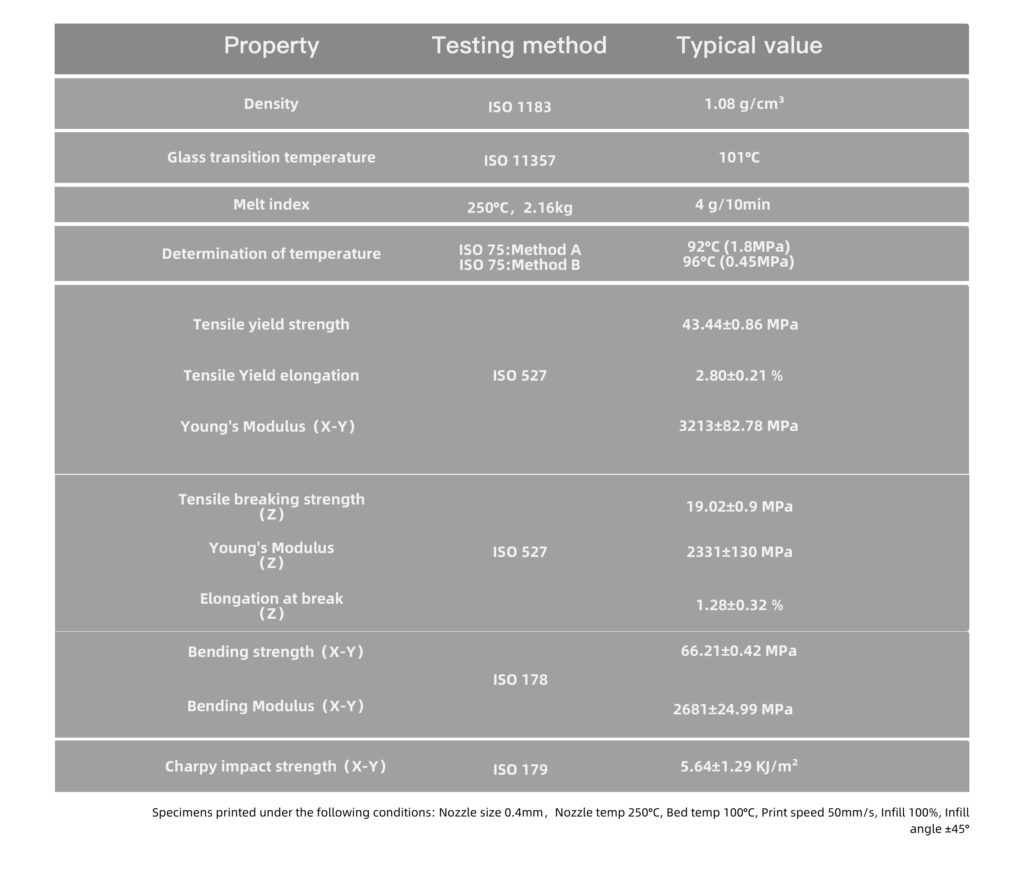

Material Properties

Recommended printing conditions​

Nozzle Temperature

250-270°C

Recommended Nozzle Diameter

0.2 mm

Recommended build surface treatment

GlassPEI Film or PC Film

Build plate temperature

100-110°C

Chamber Temp

Sealing or 60-80°C

Cooling fan speed

Off-30 %

Print speed

30-120 mm/s

Retraction distance

1-5 mm

Retraction speed

1800-3600 mm/min

Recommended Support Material

FusFree™ S-Multi Quick-Remove Support

Drying setting

70℃ for 5-6h

Annealing

N/A

Printing Tips: 1. Compared with PLA, PETG and other materials, ABS materials need a higher chamber temperature to help release the residual stress during the printing process. Please keep the printer chamber closed during the printing process. It can effectively avoid printed parts from warping and cracking. If the device has a heated chamber, it is recommended to set the temperature of heated chamber between 60-80°C. 2. If the ABS-GF filament has been unpacked for a long time and the printing quality starts to degrade during the printing process, please dry the filament at 70-80°C for 4-6 hours before printing. 3. Although FusFunTM ABS-GF has much less odor compared with similar products, it is still recommended to place the printer in a well-ventilated area during printing.

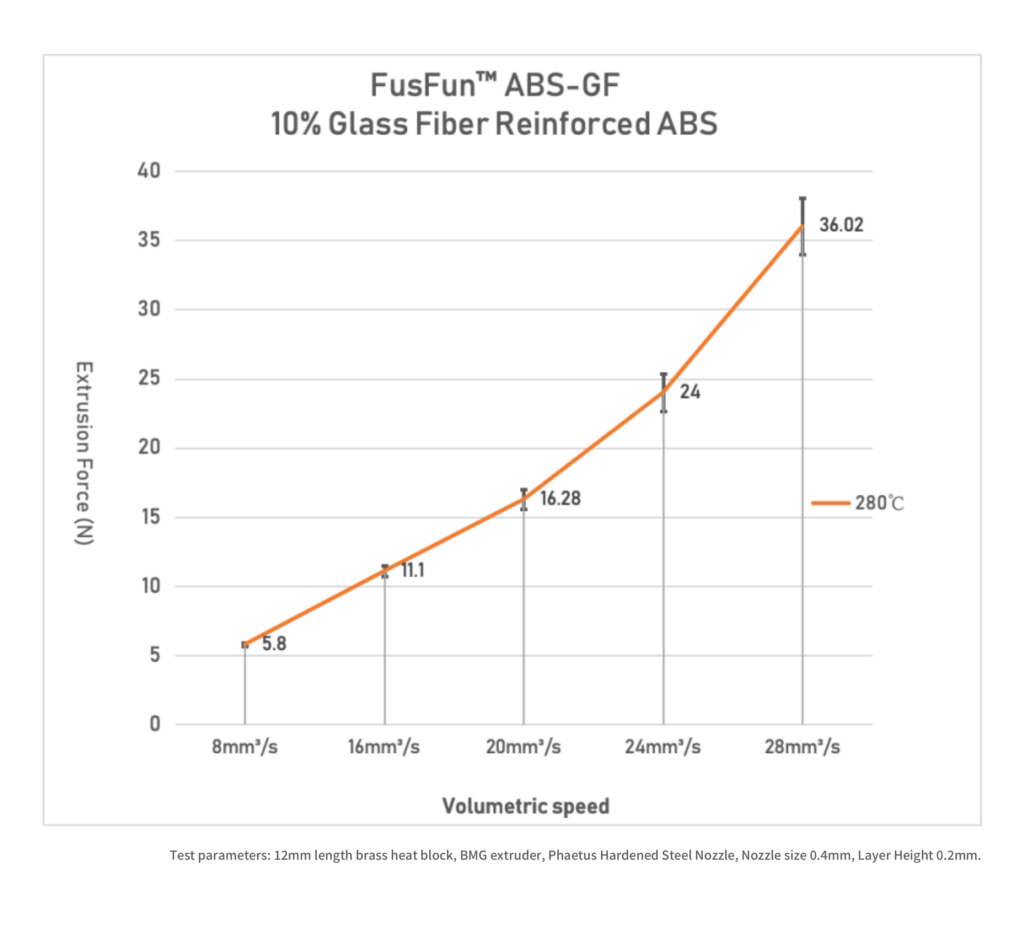

Extrusion Force vs Print Volumetric Speed Test
